Home EV Charger Installation in Southern Maine: A Complete Guide to Level 2 Charging, Electrical Capacity & Installation

Installing an electric vehicle charger at home can turn EV ownership from something that requires regular planning into something much simpler: park the vehicle, plug it in, and begin the next day with a charged battery.

The electrical side of home charging deserves careful planning, however. A Level 2 EV charger can represent a significant new electrical load. The correct installation depends on the vehicle, desired charging speed, charger, electrical-panel capacity, service size, distance between the panel and parking area, and whether the charger will be installed indoors or outdoors.

This guide explains Level 1 and Level 2 EV charging, home electrical requirements, dedicated circuits, panel and service capacity, load management, charger placement, Maine electrical-code requirements, current Efficiency Maine incentives, planning for multiple EVs, and how Katahdin Electric can install EV charging equipment throughout Biddeford and Southern Maine.

The most important points are:

• Level 1 charging uses 120-volt power, while residential Level 2 charging generally uses 240-volt power and provides substantially faster charging.

• A Level 2 charger does not automatically require a 200-amp service or electrical panel upgrade.

• The existing electrical load should be evaluated before selecting the charger's maximum charging rate.

• Dynamic load management can sometimes make EV charging possible without increasing the home's electrical-service capacity.

• Maine electrical installations commencing on or after July 1, 2026 are governed by Maine's adoption of the 2026 National Electrical Code, together with Maine amendments and applicable local requirements.

• As of September 2026, Efficiency Maine is advertising incentives totaling $400 for qualifying off-peak Level 2 chargers.

• Planning EV charging together with future heat pumps, electric water heating, renovations and other electrical loads can help homeowners avoid unnecessary electrical work later.

Why Home EV Charging Matters

For many electric vehicle owners, home is the primary place where the vehicle is charged.

The U.S. Department of Energy's Alternative Fuels Data Center states that most EV drivers charge overnight at home using Level 1 or Level 2 charging equipment.

That changes the refueling routine considerably.

Instead of waiting until the vehicle is nearly empty and making a dedicated trip to refuel, an EV can often be connected when the driver arrives home. Depending on the vehicle, charger and daily mileage, those overnight charging periods may be enough to replenish the energy used during normal driving.

The convenience is significant, but the installation should be designed around the electrical system rather than simply purchasing the highest-amperage charger available.

A properly planned home charging installation answers several questions first:

How quickly does the vehicle actually need to charge?

How much electrical capacity is available?

Where is the vehicle parked?

How far is that location from the electrical panel?

Will the charger be indoors or outside?

Are additional major electrical loads planned for the house?

Those answers can determine whether the project requires a relatively straightforward new circuit or more extensive electrical work.

Level 1 vs. Level 2 EV Charging

Residential EV charging is generally divided into Level 1 and Level 2 charging.

Level 1 EV Charging

Level 1 charging uses standard 120-volt household power.

The U.S. Department of Energy states that many drivers can satisfy daily driving needs with overnight Level 1 charging when an appropriate dedicated branch circuit is available near the parking location.

ENERGY STAR estimates Level 1 charging at roughly 2 to 5 miles of vehicle range per hour of charging, although actual results vary with the vehicle, temperature, battery condition and other factors.

For a plug-in hybrid or an EV driven relatively short distances each day, that may be enough.

For drivers who routinely use a substantial portion of an EV's battery, Level 1 charging can become inconvenient because replenishing the battery may take a long time.

Level 2 EV Charging

Level 2 charging uses 240-volt power in typical residential applications.

The Department of Energy notes that Level 2 charging is widely used for home charging because it can generally recharge a typical EV overnight.

ENERGY STAR estimates approximately 10 to 20 miles or more of additional range per hour depending on charger output and vehicle capability, while its electric-ready guidance notes a broader potential range reaching approximately 30 miles per charging hour in some applications.

The exact charging speed depends on more than the charger mounted on the wall.

The vehicle's onboard charging system has a maximum AC charging rate. Installing a charger capable of supplying more power than the vehicle can accept will not cause the vehicle to charge beyond that limit.

That is why bigger is not automatically better.

Do Most EV Owners Need a Level 2 Charger?

For many battery-electric vehicle owners, Level 2 charging is the most practical home solution.

It provides considerably faster charging than a standard 120-volt connection and makes it easier to replenish substantial daily driving mileage overnight.

However, the correct charging solution should reflect actual driving.

Someone driving a plug-in hybrid a short distance each day may be satisfied with Level 1 charging.

Someone commuting from Southern Maine to the Portland area every day, driving extensively for work, or relying entirely on a battery-electric vehicle may benefit considerably more from Level 2 charging.

The electrical installation should be sized around the household's needs rather than simply installing the largest charger advertised.

How Much Electrical Power Does a Level 2 Charger Need?

There is no single amperage for all Level 2 chargers.

Residential chargers are available with different maximum outputs, and many can be configured to operate at less than their maximum rating.

The electrical circuit must be designed for the charging equipment being installed and must comply with the applicable electrical code and equipment instructions.

The Department of Energy identifies dedicated circuits as an important requirement for EV charging equipment under National Electrical Code provisions.

This means EV charging should not be approached as though the charger were simply another appliance to plug into whatever electrical circuit happens to be nearby.

The electrician needs to consider the charger's electrical specifications, circuit requirements, wiring, breaker, installation method, distance from the panel, and the capacity of the home's electrical system.

Does an EV Charger Require a 200-Amp Service?

Not necessarily.

This is one of the most important misconceptions surrounding home EV charging.

Installing an EV charger creates a new electrical load, but that does not mean every homeowner needs to upgrade from 100 amps to 200 amps.

The electrician should evaluate the home's existing service, electrical loads and planned charger.

ENERGY STAR specifically recommends checking both electrical-service capacity and available panel space before installing Level 2 charging equipment. It notes that older homes may have 100-amp panels while newer homes commonly have 200-amp equipment, but it does not state that every EV installation requires 200 amps.

The actual answer depends on the house.

A 100-amp home with modest electrical loads may have different options from a home that already has electric resistance heating, an electric range, electric dryer, hot tub, heat pumps and other significant equipment.

The correct decision requires a load evaluation rather than relying only on the number printed on the main breaker.

Panel Space and Electrical Capacity Are Different Issues

Homeowners sometimes open the panel door, see that every breaker position appears occupied, and assume the electrical service must be upgraded.

That is not necessarily true.

Panel space refers to the physical ability to accommodate the required circuit breakers.

Service capacity refers to whether the electrical service can safely support the calculated electrical load.

A panel can lack breaker positions while the home still has sufficient overall service capacity.

The opposite can also occur: a panel may have open breaker positions even though adding a substantial new electrical load requires further evaluation.

This distinction is important because the solutions are different.

One situation may call for changes to distribution equipment.

Another may require a service upgrade.

Another may be addressed through approved load-management equipment.

Dynamic Load Management Can Sometimes Avoid a Panel Upgrade

This is becoming particularly important for EV installations.

Efficiency Maine specifically states that if a home's electrical panel is full, a charger equipped with dynamic load management can sometimes allow the homeowner to avoid an electrical panel upgrade.

Dynamic load management allows charging equipment to respond to other electrical demand in the home.

For example, if several high-demand appliances are operating simultaneously, the EV charging system can reduce or temporarily pause charging. When more electrical capacity becomes available, charging can increase again.

ENERGY STAR similarly discusses smart circuits, power-sharing devices and smart electrical panels as ways homeowners may be able to manage additional electrical loads without immediately increasing utility-service capacity.

This does not mean load management is the correct solution for every home.

It means homeowners should have the electrical system evaluated before assuming a service upgrade is unavoidable.

EV Charging and 100-Amp Electrical Services

A 100-amp service is not automatically incompatible with EV charging.

Whether a charger can be added depends on the calculated load and configuration of the home.

A property with oil or gas heating, modest electrical loads and few large electric appliances may present a very different load profile from an all-electric home.

Likewise, the homeowner may not need the charger's maximum possible output.

A driver who parks for ten hours every night may be perfectly satisfied charging at a moderate rate instead of designing the system around the highest available output.

This is where matching the electrical installation to actual driving habits can reduce unnecessary work.

EV Charging and 200-Amp Electrical Services

A 200-amp service generally provides more capacity for electrification, but it still does not guarantee that every new load can simply be added without evaluation.

A home might already contain several heat pumps, electric cooking, electric water heating, a hot tub, workshop equipment or other high-demand appliances.

The electrician still needs to consider the existing load and equipment.

The advantage of a larger service is that there may be more capacity available for projects such as EV charging, additional heat pumps, electric water heating and future renovations.

For homeowners planning several electrification projects, this broader picture becomes important.

Planning an EV Charger With Heat Pumps and Mini Splits

EV charging is often only one part of a homeowner's move toward greater electrical use.

Southern Maine homeowners may also be considering ductless mini splits or heat pumps for heating and cooling.

ENERGY STAR recommends considering future electrical equipment together when evaluating whether a home is ready for electrification. Its guidance specifically includes EV chargers, heat pumps, heat-pump water heaters and electric cooking equipment.

This is an important planning opportunity.

Suppose a homeowner wants an EV charger this year and expects to install three mini splits next year.

The electrician should know that now.

Designing only for today's charger may result in a different decision than designing around the home's likely electrical needs over the next several years.

Because Katahdin Electric performs EV charger installations, mini split installations and electrical service upgrades, those projects can be considered together instead of being treated as unrelated systems.

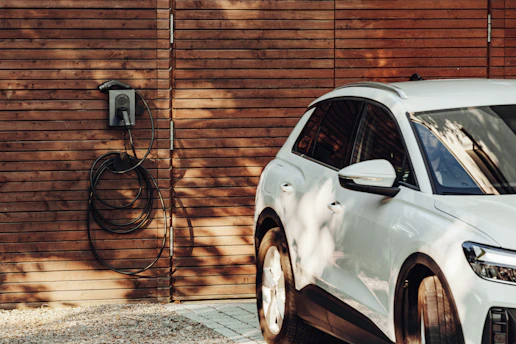

Where Should a Home EV Charger Be Installed?

The best charger location is usually near where the vehicle is routinely parked.

The U.S. Department of Energy notes that residential EV chargers are frequently installed in garages but can also be installed outdoors when the equipment is appropriately rated for outdoor use.

ENERGY STAR similarly identifies garages, driveways and appropriate exterior locations as common options.

Location matters because it affects both usability and installation.

A charger should be positioned so the charging cable comfortably reaches the vehicle without creating an unnecessary tripping hazard or requiring awkward cable routing.

The electrical route matters too.

A charger located on the wall beside an electrical panel may require considerably less wiring than one installed on the opposite side of a finished home or detached garage.

That does not make the remote installation impossible. It simply means the wiring route needs to be planned.

Can an EV Charger Be Installed Outdoors in Maine?

Yes, when the equipment and installation are designed for the location.

The Department of Energy states that residential charging equipment can be safely used outdoors, including in wet weather, when appropriately rated equipment is installed.

For Maine homeowners, outdoor installations should also account for practical conditions that are easy to overlook during summer.

Snow accumulation matters.

Snowplowing matters.

Roof runoff matters.

Ice matters.

The charging cable should remain accessible during winter, and the charger should be located where it is not likely to be damaged by vehicles, snow-removal equipment or routine driveway activity.

This is one reason charger placement should be discussed before installation rather than simply choosing the nearest exterior wall.

Plug-In vs. Hardwired Level 2 Chargers

Level 2 equipment is available in both plug-connected and hardwired configurations.

The appropriate option depends on the charger, electrical design, installation location and applicable code requirements.

A plug-connected charger can make equipment replacement or relocation convenient in some circumstances.

A hardwired unit eliminates the charger receptacle and plug connection and can be appropriate for permanent installations.

Neither approach should be selected based on convenience alone.

The equipment listing, manufacturer instructions, charging output, environment and applicable electrical requirements should all be considered.

The electrician should confirm these details when planning the project.

Choosing the Right EV Charger

The vehicle is only one part of the decision.

Homeowners should consider charging output, cable reach, indoor or outdoor rating, smart charging capability, load-management compatibility, connector compatibility and available incentive programs.

ENERGY STAR also recommends selecting certified EV charging equipment. ENERGY STAR-certified chargers are tested for safety by a nationally recognized testing laboratory and meet the program's energy-efficiency requirements.

Smart chargers can provide additional features such as scheduled charging and energy monitoring.

In Maine, those scheduling capabilities can also have financial and grid-management implications because of programs designed around off-peak charging.

Current Efficiency Maine EV Charger Incentives

As of September 2026, Efficiency Maine is advertising a total incentive of $400 for qualifying off-peak Level 2 chargers.

The current program provides a $200 instant discount when purchasing qualifying equipment and another $200 after completing the eligible setup requirements.

Efficiency Maine's participating chargers are designed to automatically avoid weekday peak charging hours from 5:00 p.m. to 9:00 p.m., although the charging schedule can be temporarily overridden when necessary.

Incentive programs can change.

Homeowners should verify the current program, eligible equipment and requirements before purchasing a charger.

This is another reason to consider the charger model and electrical installation together rather than purchasing equipment first and asking an electrician to make it work afterward.

Why Off-Peak Charging Matters

EVs create a substantial electrical load, but most vehicles do not need to begin charging at the exact moment they arrive home.

That creates flexibility.

If charging is shifted away from periods when many homes are simultaneously using electricity, it can reduce demand on the electric grid.

For the homeowner, scheduled charging can still provide a full or sufficiently charged battery by morning while allowing the charging session to occur later in the evening or overnight.

Efficiency Maine's current charger program is specifically structured around this type of off-peak charging.

How Long Does It Take to Charge an EV at Home?

There is no universal charging time.

Charging duration depends on battery size, battery state of charge, vehicle charging capability and charger output.

A vehicle arriving home with 70% charge needs much less energy than one arriving with 10%.

For this reason, homeowners should think about how much driving needs to be replenished overnight, not only the theoretical time required to charge the battery from empty to full.

The Department of Energy estimates that Level 2 charging generally provides around 25 miles of range per hour of charging as a broad reference point, while actual performance varies among vehicles and equipment.

For many households, an overnight charging window is more than adequate.

What Determines the Cost of Installing an EV Charger?

The charger itself is only one part of the project.

The installation scope can vary substantially between homes.

A straightforward installation might involve a charger mounted relatively close to an electrical panel with adequate capacity.

A more involved project might require a long wiring route, finished-wall access, trenching, an exterior installation, a detached garage, panel modifications, load-management equipment or an electrical service upgrade.

This is why a meaningful EV charger estimate should consider the property rather than relying on one flat installation number for every home.

The major cost drivers are the electrical capacity of the home, charging amperage, distance between the panel and charger, accessibility of the wiring route, installation environment and whether other electrical equipment needs to be modified.

Should You Upgrade to 200 Amps Just Because You Bought an EV?

No.

A service upgrade should be based on electrical requirements, not on EV ownership alone.

There are certainly homes where an EV charger becomes the project that makes a service upgrade appropriate.

But there are also homes where the existing service can support charging.

There are homes where a lower charging rate is sufficient.

And there are installations where load-management technology provides another solution.

A professional electrical evaluation should identify which situation applies.

When a Service Upgrade May Be the Better Long-Term Choice

Avoiding an unnecessary service upgrade makes sense.

Avoiding a necessary one does not.

If the existing electrical equipment is already due for modernization and the homeowner plans substantial additional electrical loads, a larger service may be the more practical long-term investment.

Consider a household planning an EV charger, multiple heat pumps, an induction range, heat-pump water heater and workshop.

In that situation, focusing only on how to squeeze the EV charger into the existing electrical system may not be the most useful long-term plan.

The electrician should understand the homeowner's future projects and evaluate the system accordingly.

Planning for a Second Electric Vehicle

Two-EV households are becoming increasingly realistic.

That does not always mean installing two maximum-output chargers operating simultaneously.

Depending on driving patterns, vehicles can sometimes share available charging capacity or charge at different times.

Smart charging and power-sharing equipment can help manage this.

If a household is likely to purchase a second EV, mention that during the first installation.

It may make sense to plan the wiring route, equipment location, panel configuration or load-management strategy with two vehicles in mind.

Planning for future charging is usually easier while the first project is already being designed.

EV Chargers for Detached Garages

A detached garage can present additional electrical considerations.

The electrician needs to determine how the garage is currently supplied, whether the existing feeder and panel are adequate, and what electrical changes are necessary to support vehicle charging.

In some cases, the garage may already have sufficient electrical infrastructure.

In others, a feeder or garage electrical system may require improvement.

The distance between the house and garage can also affect how the electrical route is designed.

The appropriate solution depends on the property.

Installing EV Charging During a Garage or Home Renovation

Renovation is an excellent time to consider future EV charging.

If walls are open or electrical work is already underway, conduit, wiring routes, panel space and parking locations can be planned before finishes are installed.

ENERGY STAR specifically encourages EV-ready planning and pre-wiring when homeowners expect to purchase an EV later.

Even if the charger itself is not purchased immediately, preparing the electrical pathway can make future installation easier.

This is particularly useful for homeowners building additions, remodeling garages or replacing electrical service equipment.

Maine Electrical Code and EV Charger Installation

Electrical work in Maine must comply with applicable state standards and local requirements.

The Maine Electricians' Examining Board has adopted the 2026 National Electrical Code through Chapter 120, with Maine-specific amendments.

According to the Board, electrical installations commencing on or after July 1, 2026 must comply with the 2026 NEC as adopted by Maine, along with applicable state laws, Board rules and local municipal requirements.

That is an important reason to have EV charging circuits installed by qualified electrical professionals rather than treating the equipment as an ordinary household appliance.

Permitting and inspection requirements can also vary with the municipality and project.

Katahdin Electric accounts for applicable electrical and local requirements when planning installation work.

Why an EV Charger Should Be Part of a Broader Electrical Plan

The best EV installation is not necessarily the one with the largest charger or the highest amperage.

It is the installation that fits the vehicle, driving habits, electrical system and future plans for the property.

A homeowner expecting no other significant electrical changes may have one ideal solution.

A homeowner preparing to install three mini splits, replace a fuel-fired water heater with a heat-pump water heater and remodel the kitchen may have another.

Looking at the entire electrical system allows those decisions to be made together.

That can help avoid paying for electrical work twice.

Home EV Charger Installation in Southern Maine

Katahdin Electric is based at 432 Elm Street in Biddeford, Maine and provides residential and commercial electrical services throughout Portland and Southern Maine.

For homeowners around Biddeford, Saco, Old Orchard Beach, Scarborough, South Portland, Portland, Cape Elizabeth, Gorham, Kennebunk, Kennebunkport, Wells, Arundel, Buxton, Sanford and surrounding communities, EV charger installation can often be coordinated with other electrical improvements.

Katahdin Electric can evaluate the existing electrical panel and service, determine the requirements of the charging equipment, install the appropriate circuit and charger, and identify whether panel modifications, load management or a service upgrade are actually necessary.

Because our team also handles electrical panel upgrades, service upgrades, mini splits, generators, rewiring and renovation electrical work, we can evaluate EV charging as part of the home's larger electrical system.

How Katahdin Electric Can Help With Your EV Charger

The first step does not have to be choosing a charger.

It can be determining what your home can support and what level of charging actually makes sense.

Katahdin Electric can review the existing panel and service, discuss the vehicle and expected charging requirements, evaluate the proposed charger location and develop an installation plan.

If the existing electrical system can support the charger, we can install the necessary circuit and equipment.

If electrical improvements are required, we can explain why.

If load management provides a practical alternative to a larger service, that option can be evaluated as part of the project.

And if an electrical service upgrade is the appropriate long-term solution, we can coordinate that work as part of preparing the home for current and future electrical needs.

Sources and References

U.S. Department of Energy — Alternative Fuels Data Center: Residential EV charging information, Level 1 and Level 2 charging, outdoor installations and home charging practices.

ENERGY STAR: Level 1 and Level 2 charger performance, charger certification, residential EV readiness, electrical-panel capacity and methods of managing new electrical loads.

Efficiency Maine: Current off-peak EV charger incentives, charging schedules and dynamic-load-management guidance.

Maine Electricians' Examining Board: Maine's adoption of the 2026 National Electrical Code and current electrical-installation requirements.

Katahdin Electric: Southern Maine electrical service area and company information.

Frequently Asked Questions About EV Charger Installation

Do I need a Level 2 EV charger at home?

Not every EV owner does.

Level 1 charging can work well for plug-in hybrids, lower daily mileage and vehicles that remain parked for long charging periods.

Level 2 charging is usually more practical for drivers who want faster overnight charging or routinely travel greater distances.

Katahdin Electric can help determine the electrical requirements once you know your vehicle and charging goals.

Does a Level 2 charger require 240 volts?

Residential Level 2 charging typically uses 240-volt power.

That requires an appropriate electrical circuit designed for the charging equipment rather than an ordinary 120-volt household outlet.

Katahdin Electric can install the required circuit and charging equipment.

Does an EV charger require a dedicated circuit?

EV charging equipment is generally installed on a dedicated electrical circuit sized for the equipment and applicable code requirements.

Katahdin Electric can determine the required wiring, breaker and circuit configuration for the charger being installed.

Do I need a 200-amp electrical panel for an EV charger?

No. Not automatically.

The existing electrical service needs to be evaluated based on the home's actual electrical loads and the charger being proposed.

A 100-amp home may sometimes support EV charging, while another property may require load management or additional service capacity.

Katahdin Electric can perform that evaluation before recommending an upgrade.

Can I install an EV charger if my electrical panel is full?

Possibly.

A full panel does not necessarily mean that the electrical service lacks capacity.

There may also be options involving electrical distribution changes or dynamic load management.

Efficiency Maine specifically notes that dynamic-load-management chargers can sometimes avoid a panel upgrade.

We can evaluate the panel and recommend the appropriate solution.

What is dynamic load management?

Dynamic load management allows EV charging to respond to other electrical demand in the home.

When household electricity use is high, charging can be reduced or paused. When capacity becomes available, charging can increase again.

This can sometimes allow EV charging to be added without increasing the electrical service.

Katahdin Electric can determine whether load management is appropriate for a particular installation.

Can you install an EV charger outside?

Yes.

Outdoor-rated EV charging equipment can be installed outside when the location and electrical installation are appropriate.

For Maine homes, we also consider practical issues such as snow, ice, drainage, vehicle placement and snow removal when discussing charger location.

Can an EV charger be installed in a detached garage?

Yes, but the garage electrical system needs to be evaluated.

The existing feeder, subpanel and available capacity may affect the scope of work.

Katahdin Electric can inspect the existing garage power and determine what is required.

Should I buy the charger before calling an electrician?

It is often useful to discuss the project with an electrician first.

The appropriate charger output may depend on the home's electrical capacity, driving needs and available incentive programs.

Choosing the electrical strategy first can help avoid purchasing equipment that is poorly matched to the house.

Are there EV charger rebates in Maine?

Yes, qualifying equipment currently has an Efficiency Maine incentive.

As of September 2026, Efficiency Maine advertises up to $400 for qualifying off-peak Level 2 charging equipment, subject to its current program rules.

Programs change, so homeowners should confirm eligibility before purchasing equipment.

Will Katahdin Electric help determine if my charger qualifies?

We can help homeowners understand the electrical installation and evaluate charging equipment as part of the project. Current rebate eligibility ultimately depends on the program's requirements and qualifying-equipment list.

We recommend checking the current Efficiency Maine program before equipment is ordered.

Can you install my charger and upgrade my electrical service at the same time?

Yes.

If evaluation shows that the existing service needs additional capacity, Katahdin Electric can incorporate the EV charger into the service-upgrade plan.

This can be especially useful for homeowners also planning heat pumps, mini splits, renovations or other major electrical improvements.

Can you prepare my home for an EV even if I haven't bought the vehicle yet?

Yes.

Pre-wiring or planning the electrical pathway during a renovation or service upgrade can make a future charger installation easier.

ENERGY STAR specifically recommends considering EV-ready wiring as part of broader home electrification planning.

Katahdin Electric can evaluate where the vehicle will be parked, available panel capacity and how best to prepare for future charging.

Does Katahdin Electric install EV chargers near Biddeford, Saco and Portland?

Yes.

Katahdin Electric is based in Biddeford and provides electrical services throughout Southern Maine, including communities in the Biddeford, Saco and greater Portland area.

If you are considering an EV charger, contact Katahdin Electric at 207-770-0705 to schedule an electrical evaluation or request an estimate.

Hours

Monday - Saturday
8:00am - 5:00pm

PHONE | Email

support@katahdinelectric.com

207-770-0705

© 2026. All rights reserved.

Serving Southern Maine with trusted electrical and minisplit heat pump solutions

Arundel | Alfred | Berwick | Buxton | Biddeford | Brunswick | Cape Elizabeth | Cape Neddick | Falmouth | Freeport | Kennebunk | Kennebunkport | Kittery | Gorham | Hollis | Lyman | Saco | Scarborough | South Portland | Ogunquit | Old Orchard Beach | Sanford | South Portland | Portland | Waterboro | Westbrook | Wells | Windham | Yarmouth

CONTACT US
